Channel Selective Repeater CCRE385
1. Main Features
ü Superior RF performance, high efficiency
ü High Gain (up to 90dB) and low noise
ü Support TETRA system, channel selective upto 8 carriers
ü Use PLL and ALC technology, high stability and reliability
ü Advanced software radio technology
ü Outstanding digital IF signal procession technology
2. Applications:
|

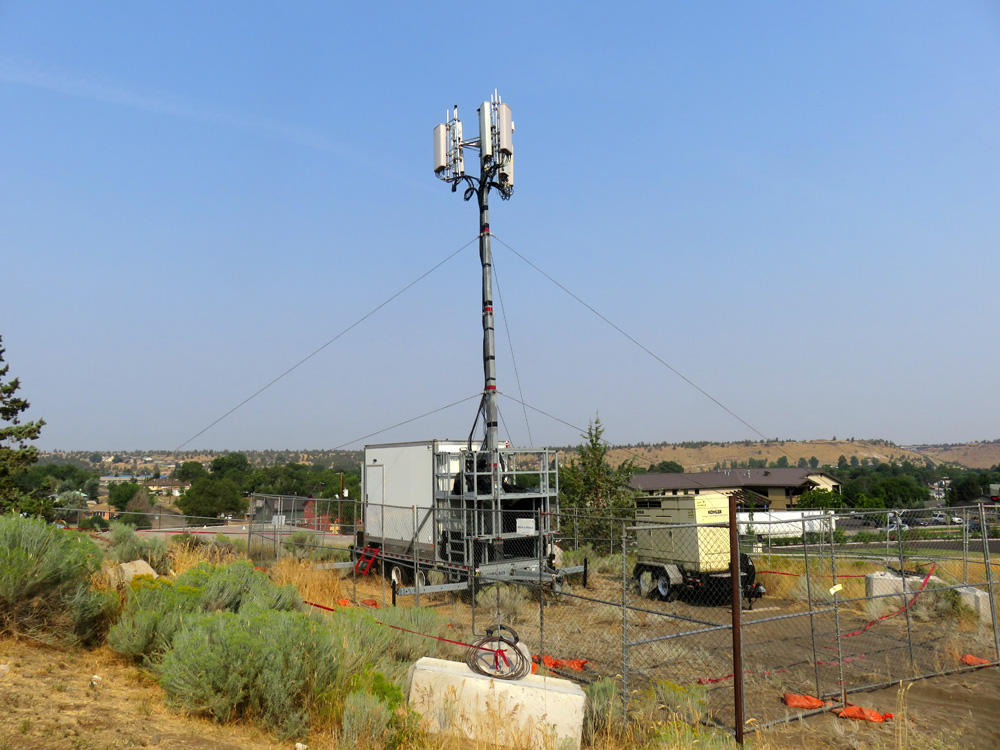

BTS |
|
Repeater |
|
Indoor Signal Distribution System |
|
Donor Antenna |

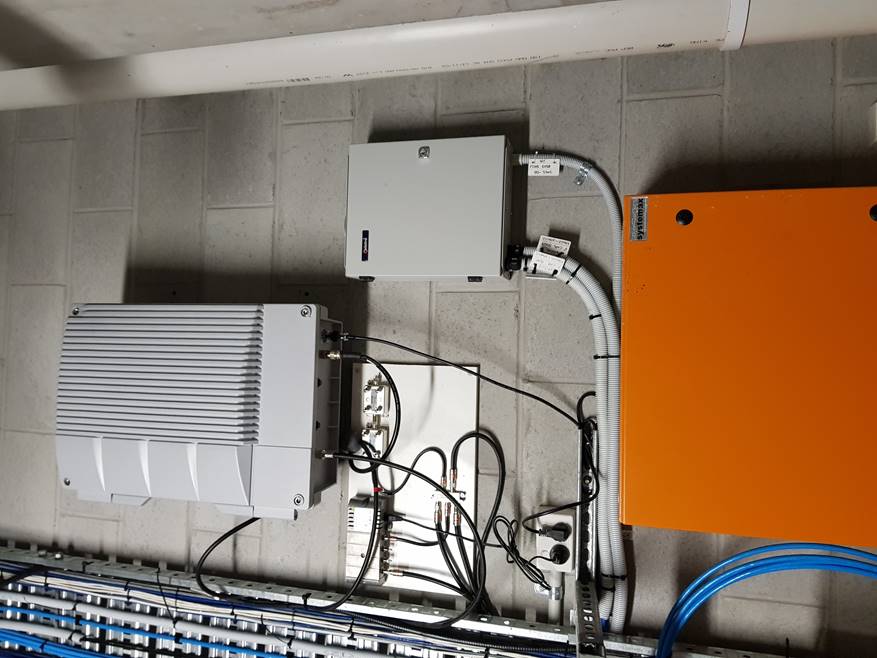

The Repeater (BDA - Bi-Directional Amplifier) is connected via coaxial cable to a Donor Antenna and Service Antenna or DAS. Usually the Donor Antenna is placed outside the building where it has the best direction to get the qualified BTS signal for the input to the repeater, after the weak signal is amplified by the repeater, the signal will be distributed by the Service Antenna or DAS are where they can extend radio coverage to the areas with weak signal.
3. Technical Specifications
|
NO. |
Items |
Parameters |
||
|
Downlink |
Uplink |
|||
|
1 |
Frequency Range |
350MHz～520MHz |
350MHz～520MHz |
|
|
Frequency band can be customized upon requirement. The operation bandwidth is 5MHz,and the duplex interval is 10MHz. |
||||
|
2 |
Channel Bandwidth |
25kHz |
25kHz |
|
|
3 |
NO. of Channel |
8 |
8 |
|
|
4 |
Output Power (Max) |
37 dBm (1 carrier) 34 dBm (2 carriers) 31 dBm (4 carriers) 28 dBm (8 carriers) |
||
|
5 |
Max Gain |
90±3dB |
85±3dB |
|
|
6 |
Gain Modulation Range |
30dB |
||
|
7 |
Gain Modulation Step |
1dB |
||
|
8 |
Gain Modulation Error |
While gain is 0-20dB,Error≤1dB;While gain is 21-30dB,Error≤1.5dB |
||
|
9 |
Max NO Damage Input Power |
-10dBm |
-10dBm |
|
|
10 |
Automatic Level Control (ALC) |
Output power variation < 2dB or be off when adding 10dB at max output power. Control range≥30dB. |
||
|
11 |
Pass Band Ripple |
≤3dB |
||
|
12 |
VSWR |
≤1.5 |
||
|
13 |
Time Delay |
≤22.0μs |
||
|
14 |
Spurious Emissions |
In-Band |
≤-36dBm/3kHz or ≤-60dBc/3kHz |
|
|
15 |
IMD |
In-Band |
≤-45dBc/30kHz |
|
|
16 |
Rejection Out of band |
≤-30dBc@±200KHz ≤-50dBc@±600KHz ≤-55dBc@±1MHz ≤-60dBc@±5MHz |
||
|
17 |
Power Consumption |
≤170W |
||
|
18 |
Local Monitoring & Control |
RS232, Dry contact alarm |
||
|
19 |
RF Connection Mode |
N/F,50Ω |
||
|
20 |
Power Supply Mode |
AC100V~260V,50±5Hz; |
||
|
21 |
Operation Temperature |
-25℃ ～ +55℃ |
||
|
22 |
Relative humidity |
≤95% |
||
|
23 |
Casing class |
IP65 |
||
|
24 |
Machine Weight |
≤25kg |
||
|
25 |
Dimension |
357mm×217mm×453mm (W*H*L) |
||
|
26 |
Mounting |
Wall or Pole |
||
