COR780 Outdoor CPE

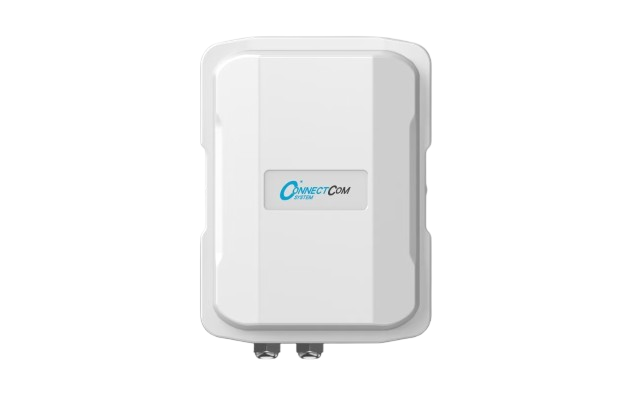

Industrial 5G Outdoor CPE COR780
COR780 5G CPE is designed for industrial user application, meeting the harsh outdoor environment challenge, operating temperature upto 65ºC, IP66 waterproof and dust proof capability.
COR780 5G CPE supports 5G/ LTE/3G global network and frequency bands. The WIFI supports 2.4GHz/5GHz dual-band Gigabit concurrent function, meet the access sharing needs of more than 60 users' WIFI hotspots, and provide stable and high-speed wireless broadband access for industrial and enterprise users.
Feature
Standard Package:
The package includes a 5G CPE, mounting accessory, POE adaptor.
Technical Specification
|
Hardware Specification |
||
|
Chipset |
MTK T750 |
|
|
MEMORY |
1GB LPDDR4x + 1GB NAND Flash |
|
|
Interface |
2 Ethernet ports |
|
|
LED Indicator |
“Net”, ”PWR”, “Wi-Fi” |
|
|
SIM/UIM |
Standard draw card interface, support 1.8V/3V SIM/UIM card |
|
|
Button |
Reset |
|
|
Standard Power |
POE input: DC 24V/1.5A |
|
|
Operating Temperature |
-20ºC ~ +65ºC |
|
|
Environment humidity |
5%~95%, no condensation |
|
|
Case |
Waterproof IP66 |
|
|
Dimensions |
300mm*226mm*79mm |
|
|
Weight |
1.5KG |
|
|
Network Specification |
||
|
Frequency Band |
• 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/77/78/79 • 5G NR: DL 4×4 MIMO: n1/3/7/38/40/41/77/78/79 UL 2×2 MIMO: n41/77/78/79
• LTE FDD: B1/3/5/7/8/18/19/20/26/28/32 • LTE TDD: B38/40/41/42/43 LTE: DL 4×4 MIMO:B1/3/7/32/38/40/41/42/43
|
|
|
Data rate
|
Downlink: • NR Sub6: 256QAM / Peak data rate 4.67Gbps • LTE 256QAM / Peak Rate 1.6Gbps Uplink: • NR Sub6: 256QAM / Peak data rate 1.25Gbps • LTE: 256QAM / Peak Rate 211Mbps |
|
|
5G NR Specifications |
3GPP Release 15 |
|
|
LTE Specifications |
3GPP Release 15 |
|
|
Antenna |
4 * 4 MIMO 4G/5G antenna |
|
|
WLAN |
IEEE 802.11 AX, WIFI 6 |
|
|
5GHz band bandwidth supports 20MHz, 40MHz, 80MHz, 160MHz |
||
|
2.4GHz band bandwidth supports 20MHz, 40MHz |
||
|
|
||
|
Network Protocols and Features: |
||
|
Multi APN |
Support |
|
|
Multi VLAN |
Support |
|
|
Connection modes |
PPPoE/DHCP/Static |
|
|
Others |
IPv4, IPv6, IPv4/IPv6 DHCP v4/v6 server Static (v4/v6) routing NAT/DMZ ARP/ICMP |
|
