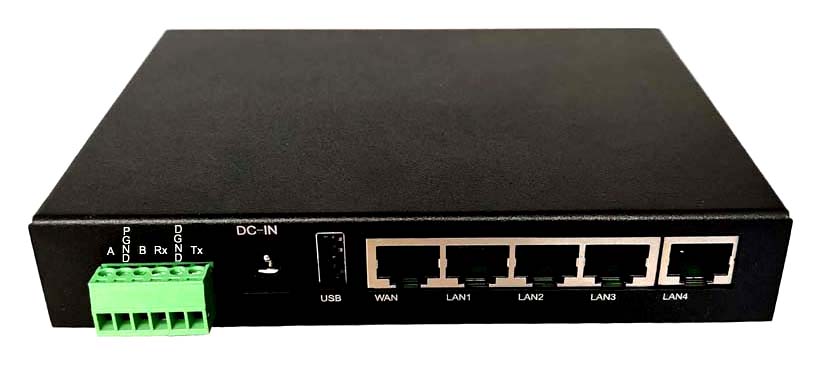

4G LTE/5G industrial router CRT200
Feature:
• 3G/4G LTE/5G data transmission
• Active auto connect
• Embedded watchdog, Auto recovery
• 2*2 MIMO 4G/WIFI antenna
• 4*4 MIMO 5G antenna
• Integrate 3G/4G LTE/5G, WIFI, GPS feature
• 1* WAN/4* LAN ports, 10M/100M/1000Mbps
• One console port, One USB2.0 port, RS232 or RS485 Interface
• SD data storage (Optional)
• With two SIM card slot
• Remote management platform
• Supports Wi-Fi 802.11AC, 1.2Gbit
• Supports 50 Wi-Fi users sharing
Technical Specification
|
Hardware Specification |
|
|
Chipset |
MTK7621A |
|
Interface |
1*WAN, 4* LAN Gbit ports |
|
RF |
WI-FI,4G LTE, 5G, GPS |
|
LED Indicator |
“SYS”, “Net”, ”RSSI”, “WAN”, “LAN” |
|
SIM |
Standard SIM card |
|
button |
Reset |
|
Wide Range Power Supply |
DC input: DC +6/2.5A~+36V/0.5A |
|
Working current |
2A (Max Current) |
|
Environment humidity |
95% |
|
Case |
Black steel case |
|
Dimensions |
155mm*105mm*25mm |
|
Weight |
225g |
|
Network Specification |
|
|
Network |
5G, FDD LTE,TDD LTE,WCDMA, CDMA, EVDO,GPRS,GSM |
|
WI-FI |
802.11 AC, 1Gbps |
|
Data rate
|
5G SA Sub-6 .DL 2.1Gbps; UL 900Mbps 5G NSA Sub-6. DL 2.5Gbps; UL 650Mbps 4G LTE. CAT 4 ~ cat 12 , DL 150~600Mbps , UL 50~100Mbps WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps |
|
WI-FI Tx Power |
14 dBm(11g); 17 dBm(11b); 14dBm(11n) |
|
Tx Power
|
LTE: Class 3 (0.25W) UMTS,WCDMA, CDMA: Class 3 (0.25W) |
|
WI-FI Frequency |
2.4G/5.8G dual frequency bands |
|
Frequency Band |
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42/B43/B48 HSPA+/WCDMA: B1/B3/B5/B8
Frequency Band can be customized |
|
5G version |
5G NR: n1/n2/n3/n5/n7/n8/n20/n28/n41/n66/n71/n77/n78/n79 5G NR: n1/n2/n3/n7/n41/n66/n77/n78/n79 |
|
Antenna |
4×4 MIMO 5G antenna |
|
Security |
Support WEP;WPA;WPA2 encryption; |
| Protocol |
PPTP, L2TP, IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS, TR-069,GRE,HTTPS,SSH, Open VPN,SNMP |
